Simco-ION AeroBar 5685 Local Area Ionizer

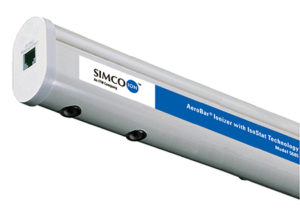

Simco-Ion AeroBar® 5685 Local Area Ionizer

AeroBar 5685 Steady State DC Static Control Ionizing Bar





Steady State DC Ion Emission with Intrinsically Balanced Ionization

Simco-Ion’s AeroBar Ionizer Model 5685 is designed to control static charge in mini-environments, laminar flow hoods and workstations. The Model 5685 features a unique aerodynamic design that ionizes a local area without disrupting laminar flow. Ideal in 12-24 inch distance applications with laminar air flow, the Model 5685 utilizes steady-state DC ion emission and Simco-Ion’s IsoStat® Technology. IsoStat technology guarantees intrinsically balanced ionization. No complicated feedback circuits are required to maintain balance and adjustment is never needed.

  • IsoStat® technology

  • Steady-state DC ion emission for high ion density

  • Single-crystal silicon or titanium emitter points

  • Multiple lengths, including short 11 inch AeroBar

AeroBar 5685 DataSheet


Specifications

Input Voltage 24 VAC (±10%), 50-60 Hz, 3.5W (max)
Balance 25 sec or less for ±1000V to ±100V discharge @ 24” with min 60 fpm airflow
Discharge ±50V @ 24” measured directly below two opposite polarity emitter points (Model 5685 must be mounted at least 6” away from grounded surfaces for optimum balance performance)
Ion Emission Steady State DC
Emitter Points Single-crystal silicon, machined titanium
Dimension 2.1H x 1.13W x 11, 22, 44, 64L in. (5.3H x 2.9W x 27.9, 55.9, 111.8, 162.6L cm)
Weight 9 oz per foot of bar length (255g per 0.3m)

  • Back-End Semiconductor Processing
  • Front-End Semiconductor Manufacturing

TARGET APPLICATIONS:

The AeroBar 5685 is designed to control electrostatic discharge and particle contamination in mini-environments in locations where forced-air is not favored such as a wafer handler station.

Model 5685 air ionizer wafer handler installation application

The AeroBar 5685 is designed to control electrostatic discharge and particle contamination in mini-environments such as a wafer inspection areas.

Model 5685 air ionizer wafer inspection installation application
