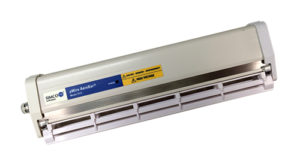

Simco-Ion μWire AeroBar® 5711 Low Profile
Low Profile Design Makes It Easy to Install in a Variety of Flat Panel Tool Locations
Simco-Ion’s μWire (“Microwire”) AeroBar Model 5711 is a cost-effective, high-performance ionizer specifically designed to eliminate static charge on large surface areas. The μWire AeroBar can be operated with the factory default settings in “plug-and-play” mode, or optimized for a specific application using the Handheld Terminal. The bar’s ability to perform well in either a vertical or horizontal position along with the μWire AeroBar low profile height and length design makes it easy to install in a variety of flat-panel tool locations (mail-slot, conveyor and load/unload cassette areas as well as within many backend semiconductor assembly and test areas.
- Compact Size (150 or 250 mm length)
- Unique corona wire design (no emitter points)
- Micropulse high voltage technology
- Remotely mounted controller for 5711 AeroBar
Download Datasheet AeroBar 5711
Specifications
| Input Voltage | 24 VDC ±10%, 12W (max) |
|---|---|
| Balance | <±25V over the length of the bar; maintains balance performance >6 months without cleaning (in an ISO 14644-1 Class 4 or better environment) |
| Ion Emission | Micropulsed high voltage technology |
| Emitters | Tungsten wire, 80 micron dia. |
| Cleanliness | ISO 14644-1 Class 2 (better than Fed. Std. 209E Class 1) |
| Dimension | 5711 AeroBar Ionizer: 3.0H x 1.3W x 6.3 or 10.2L in (76H x 34W x 160 or 260L mm) 5711-CTRL: 4.7H x 1.9W x 3.2D in (119H x 48W x 83D mm) |
Target Markets
- Back-End Semiconductor Processing
- Flat Panel Display Manufacturing
