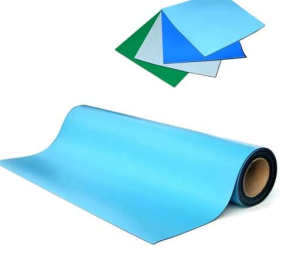

The MT4500 series Two-Layer Rubber ESD Table Mats are made with premium performance 0.080″ thick ESD rubber that protects your static sensitive items as well as your work surface.
The MT4500 Series Two Layer Rubber ESD Table Mats are made with our durable 2-ply rubber. It is constructed with two layers: A black conductive bottom layer and a static dissipative colored top layer which creates outstanding static eliminating performance. The static dissipative top layer absorbs the static from items placed upon it in safe, controlled manner and flows through the conductive bottom layer quickly to ground to be neutralized. Our ESD Rubber Pre-Cut Table Mats are tested and certified to ANSI ESDs20.20 standards for ESD Worksurfaces and test reports can be obtained by request. Learn more about ESD Standards at the ESDA.org
Two-Layer Rubber ESD Mats Protect Your Workstation
Our MT4500 Series ESD Rubber Two-Layer ESD Table Mats protect your worksurface from wear-and-tear of the manufacturing process. The durable rubber matting provides great protection against most general use applications – cutting, scraping, gouging, sliding – nothing is too much for our two-layer ESD rubber table mats. For working on electronics, the ESD Rubber Mats offer excellent resistance to hot solders, soldering irons and most solvents.

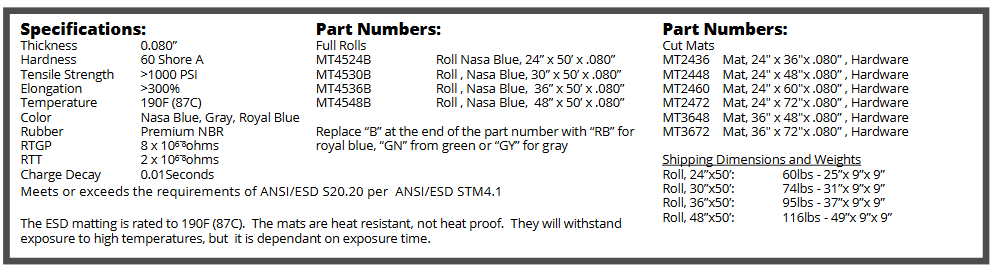

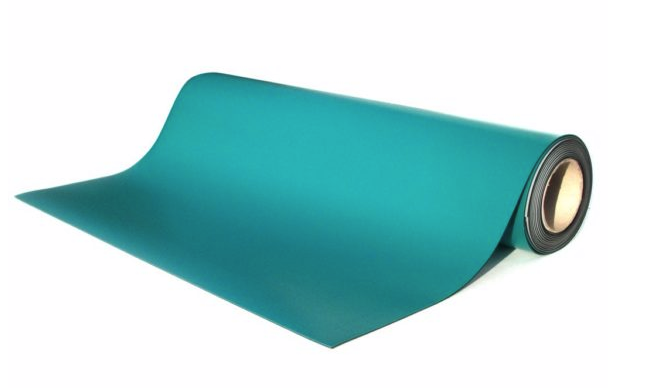

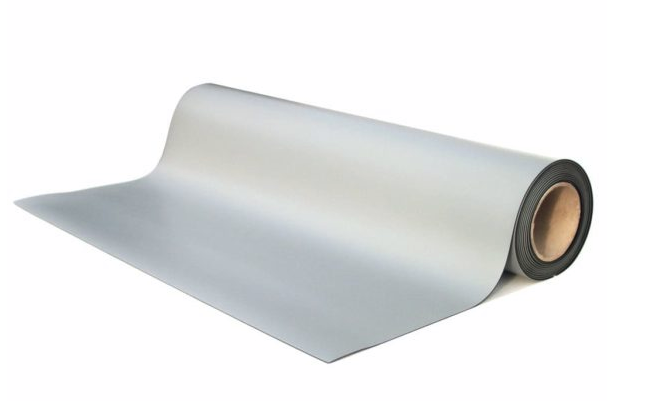

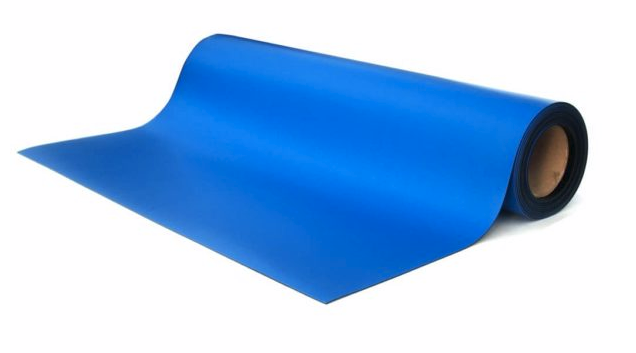

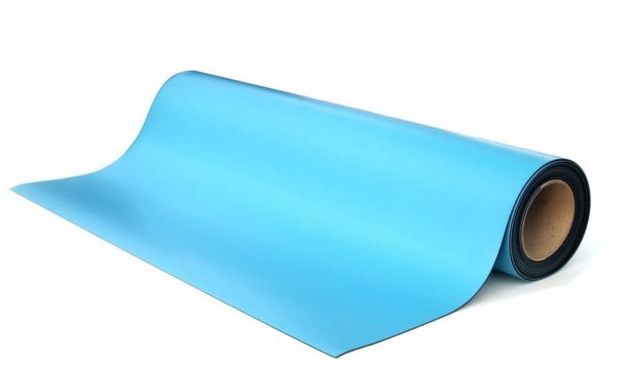

MT4500 series two-layer rubber ESD table mat is 0.080″ thick and available in 50′ long rolls in 24″, 30″, 36″, and 48″ widths. Pre-cut mat sizes are packaged individually with two (2) female 10 mm snaps and a common point ground cord. Learn more about the pre-cut mats.
Meets or exceeds requirements of ANSI ESD-S20.20 and the recommendations of ANSI/ESD STM4.1
Two-Layer Rubber ESD Worksurface Mats
Transforming Technologies has the most cost effective ESD rubber mats available. Order a Full Roll of rubber and cut pieces as needed or order Pre-Cut Mats in standard sizes or have us create custom mats to fit your workstation. All pre-cut ESD rubber mats come with a grounding hardware: a common point ground cord and 2 grounding snaps. Our low profile common point ground cord has two banana jacks which provide a ground point for two wrist straps.
Protect Your Work Surfaces with Two-Layer Rubber ESD Table Mats
Our ESD rubber table mats are the perfect solution for protecting tables from harsh processes. The mats offer excellent resistance to hot solders, soldering irons and most solvents. The mats are excellent for your production table because they are incredibly durable resisting scratching and gouging processes.
ESD Protection According to Industry Standards
The MT4500 series Two-Layer Rubber ESD Table Mats provides reliable ESD protection for the life of the mat. The material has been independently tested and meets or exceeds all industry standards for worksurfaces.
All three styles of work surface mats supplied by Transforming Technologies meet the point-to-point and point-to-groundable point resistance requirements of ANSI/ESD S20.20 when tested at both low and moderate relative
humidity with a resistance meter. According to ANSI/ESD S20.20, an acceptable work surface will have a point to point and a point to groundable point resistance of less than 1.0×10^9 ohms
