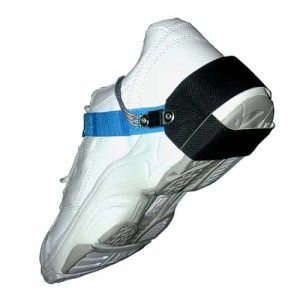

The HG1246 ESD Heel Grounder is a superior quality, cup-style shoe grounding system designed to ground mobile personnel.

The HG1246 ESD Heel Grounder is compatible with most footwear and includes an adjustable D-ring and a full 36″ conductive ribbon. These heel grounders connect the person wearing them to ground via a proper floor mat or flooring material. Wearing the conductive ribbon inside the shoe or sock assures proper electrical contact with the user. A molded 1 meg ohm resistor is  visible and and included for safety. Heel grounders are worn on both feet to provide consistent grounding while in motion.

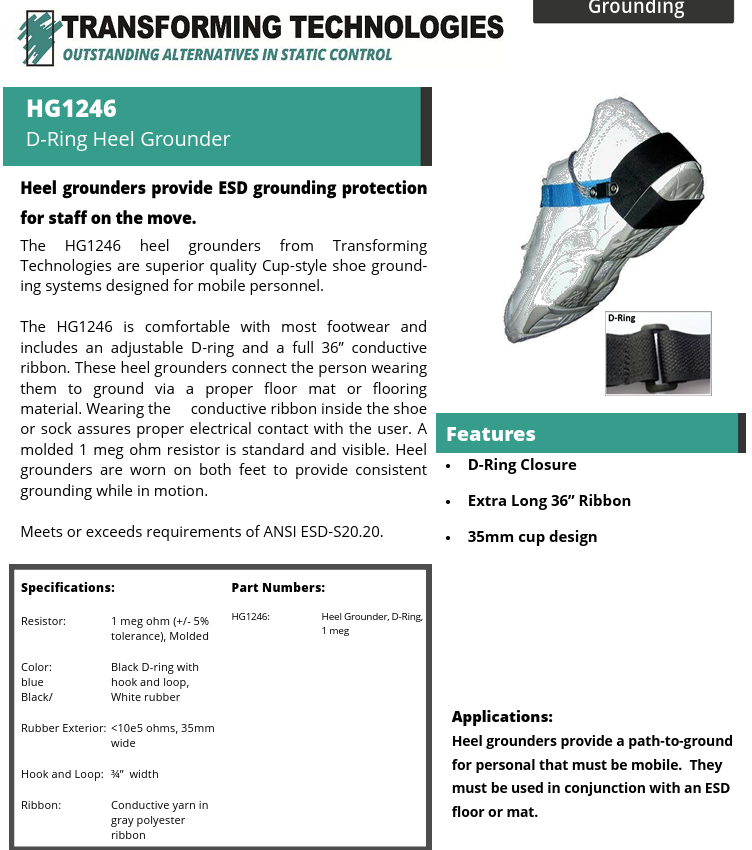

Specifications of the Transforming Technologies HG1246 Heel Grounder:

• Resistor: 1 meg ohm (+/- 5% tolerance), molded
• Color: Black D-ring with blue hook and loop, black/white rubber
• Rubber exterior: Hook and Loop: 0.75″ width
• Ribbon: Extra long 36″ conductive yarn in gray polyester ribbon
• Meets or exceeds requirements of ANSI ESD-S20.20.
