• TESTING: Independently test the functioning of ESD footwear & wrist strap grounding products and signals if there is a problem
• HANDS-FREE: Automatically test footwear in hands-free mode
• SIGNALS: Audibly and visually signal a “Pass”, “High-Fail” or “Low-Fail”
• TIME SAVE: Tests both feet simultaneously and independently to save time
• ACCURATE: Uses a 100volt test circuit (by default) which is the same voltage used for qualification tests.  Adjustable to 30 or 50volts as well.

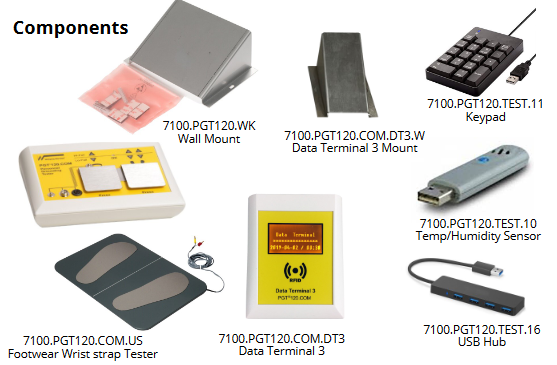

• COMPONENTS: 7100.PGT120.US Non Data Logging Tester, 7100.PGT120.WK Wall Mount
• BARRIERS: The PGT120 can integrate with a door/barrier system and trigger the barrier to open with a PASS test. Interested in a Turnstile? Learn more about our AccessPRO turnstile system.

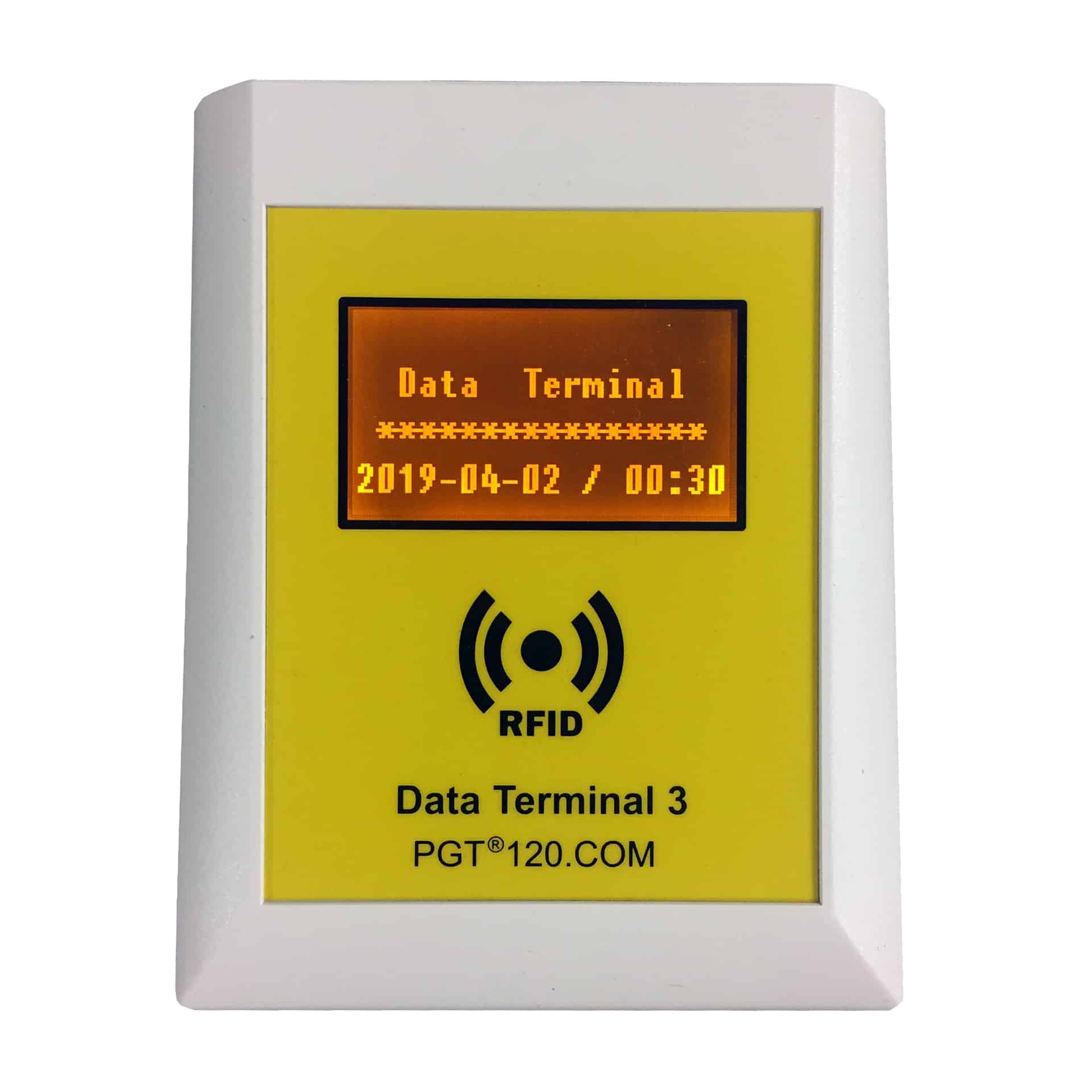

• Series 300– with Data Log DT3: “smart” ESD combo tester that integrates with computer to record test results into data base PLUS a built in RFID reader used for employee information.

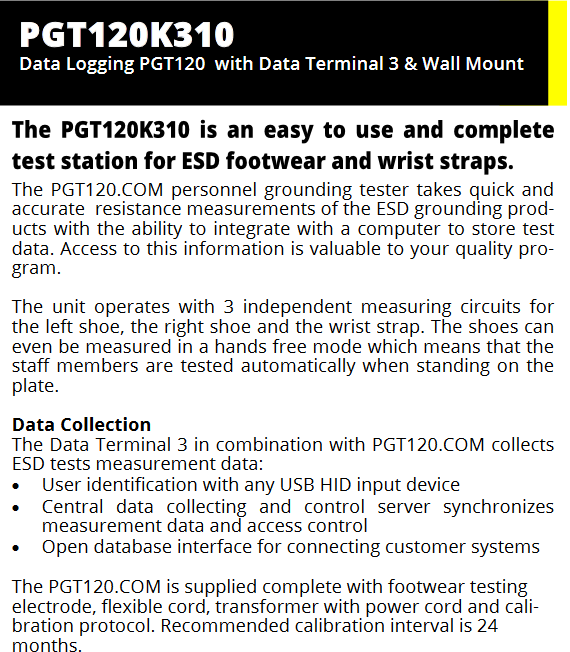

The PGT120 is an easy to use and complete test station for ESD shoes and wrist straps.

The personnel grounding tester is able to perform a quick and accurate control measurement of the ESD protection. The test results are indicated both with audible and visual signals. The PGT120 measures the left and right shoe separately.

The shoes can even be measured in a hands-free mode which means that the staff members are tested automatically when standing on the foot plate. PGT 120 can be connected to an automatic door opening system.

Hands-Free Testing Video

100volt Test Circuit
The PGT120 uses a 100volt test circuit (by default) which is the same voltage used for qualification tests. Using 100 volts allows the PGT120 to test all materials consistently. DIP switches on the PGT120 can adjust the voltage to either 30V or 50V.

The PGT 120 is supplied complete with footwear electrode, flexible cord, transformer with power cord.

PGT120 Features:

PGT120 ESD Tester Installation Options

Wall Mounted

















---

Turnstile Integration















---

Turnstile Integration















Accessories
The PGT 120 is supplied complete with footwear electrode, flexible cord, transformer with power cord.

Periodic Verification Unit
The PGT120 is factory calibrated and comes complete with a NIST traceable certificate. Calibration can be verified with the PGT120.CU. Recommended calibration verification interval is 24-months.(sold separately).

Foot Plate Mat
The footwear testing plate can fit inside an anti-fatigue mat with high visibility yellow borders. Part Number: 7100.PGT120.SM.(sold separately).

Walk Mounting Plate
The wall mounting plate: Part Number 7100.PGT120.WK (sold separately).

Part Number	Description: PGT120K300 SERIES – DATA LOGGING w/ RFID	Unit of Measure

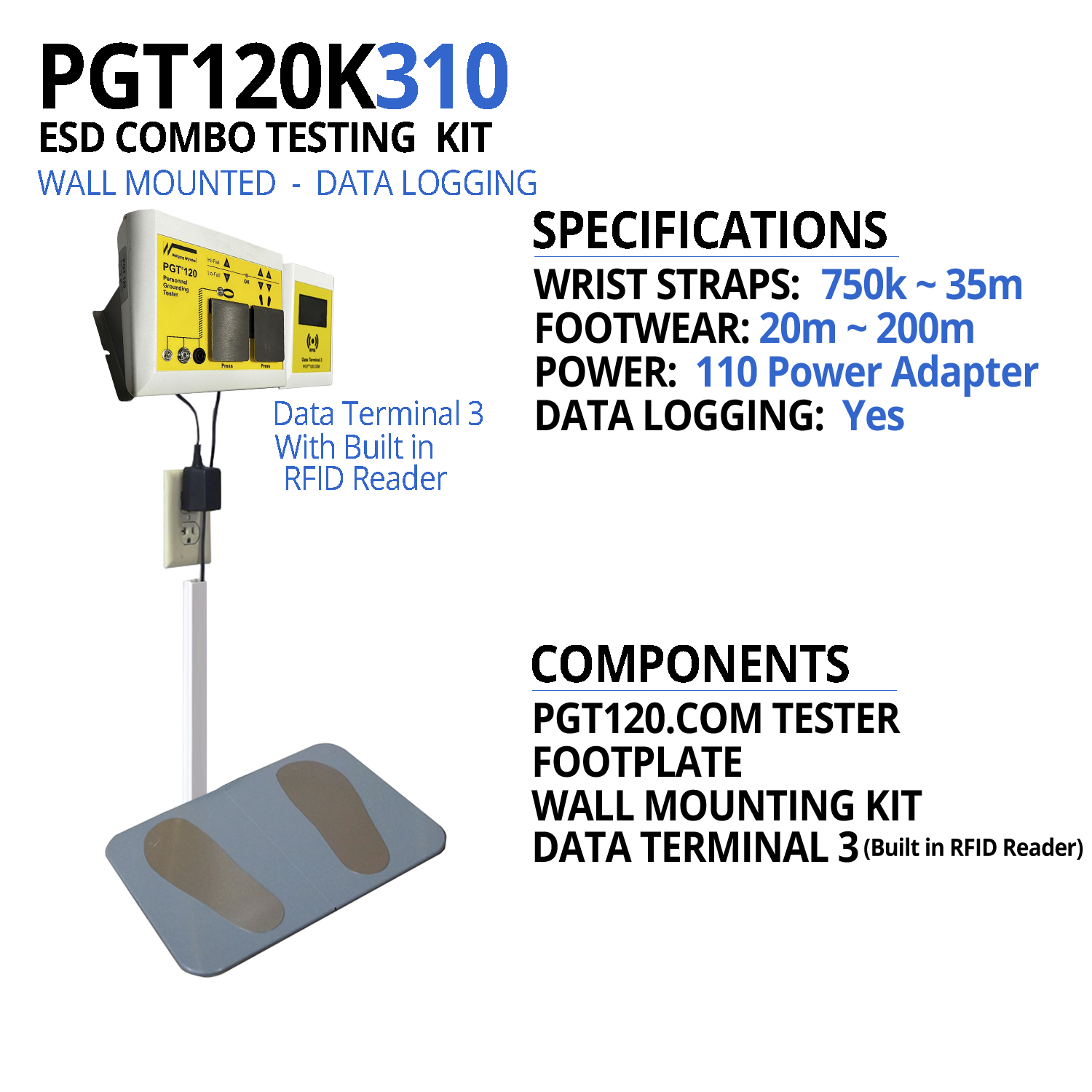

PGT120K310	PGT120.US, footplate, cables, wall mount	Each
PGT120K320	PGT120.US, footplate, cables, test stand	Each
PGT120K330	PGT120.US, footplate, cables, Standard turnstile	Each
PGT120K340	PGT120.US, footplate, cables, Fast Pass turnstile	Each
